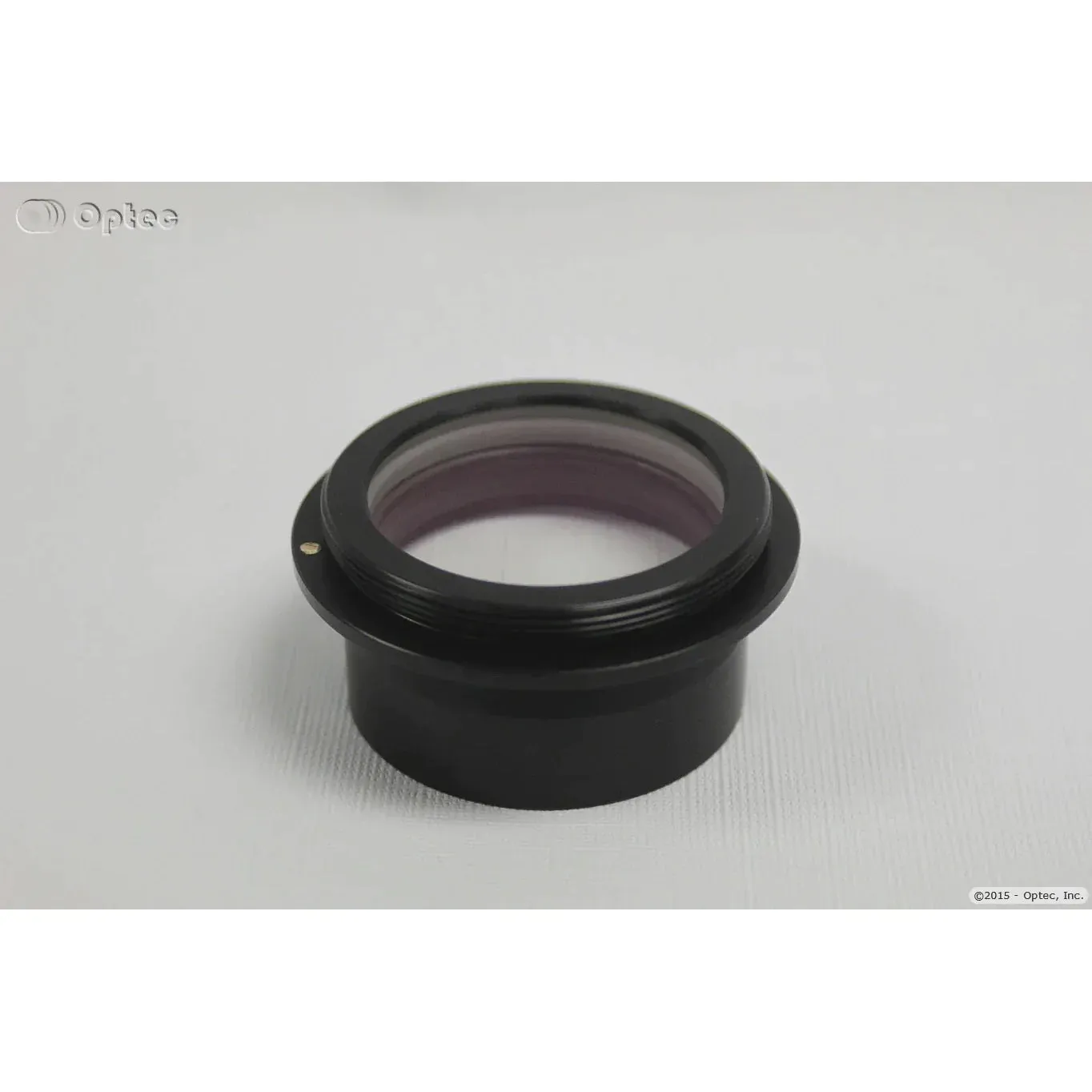

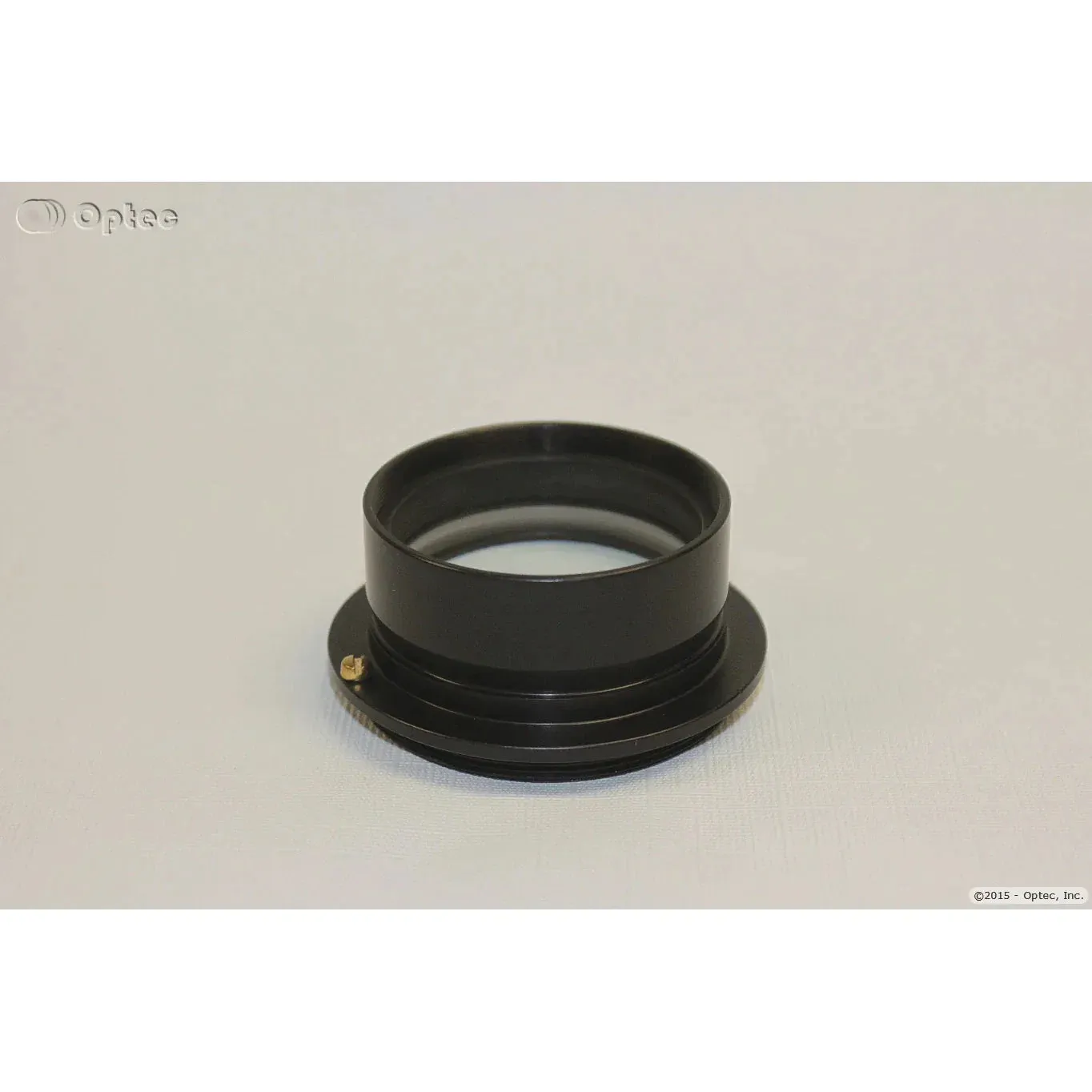

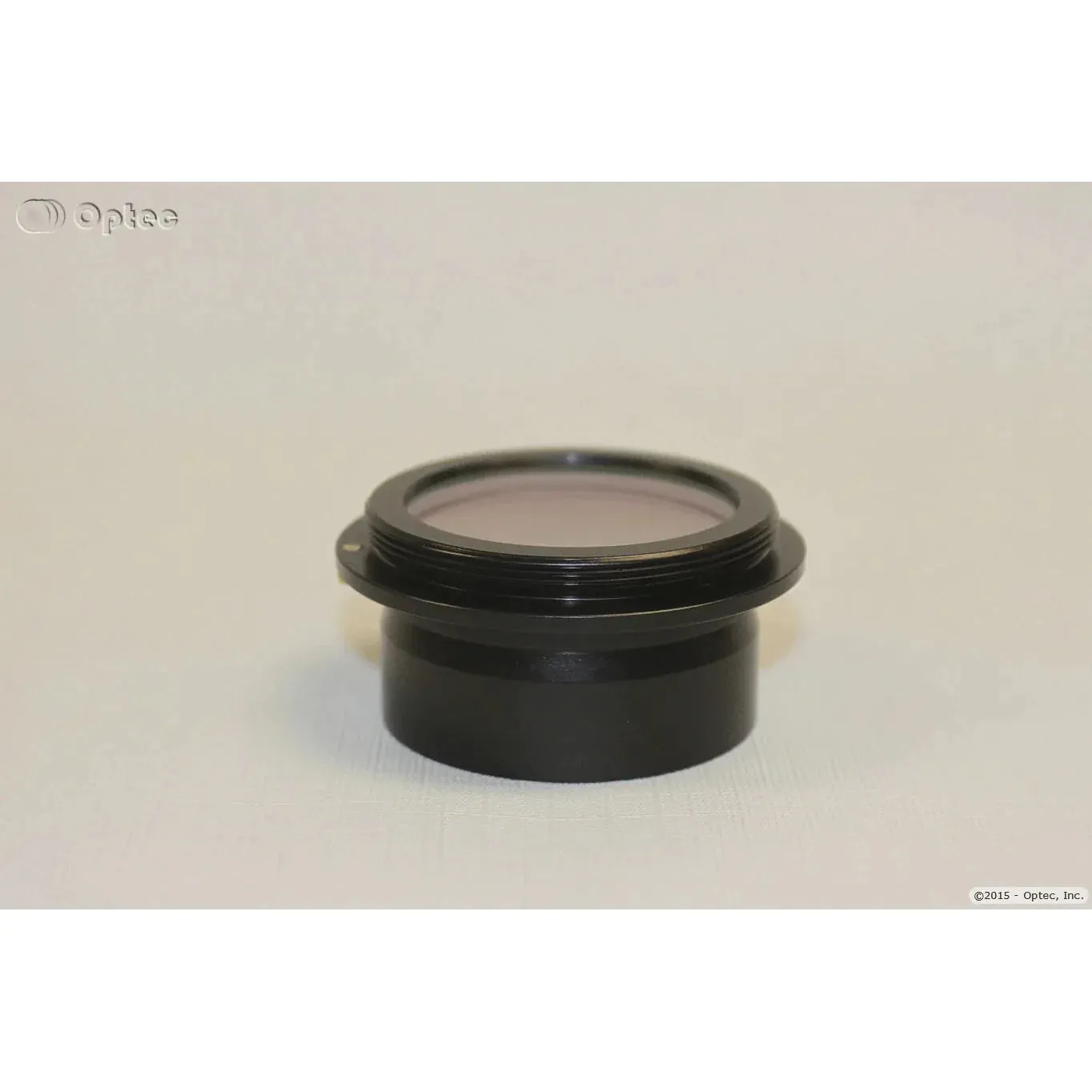

Optec Lepus-STL 0.62X

Optec's #19405 Lepus-STL is a special version of the Lepus telecompressor featuring a male STL 2.156"x24tpi thread in place of the standard OPTEC-2100 dovetail. Designed especially for the SBIG STT-8300/FW8G/AO8 camera combination, many users prefer the threaded attachment over the dovetail and setscrew arrangement of the NextGEN and standard Lepus telecompressors.

The Lepus-STL version is compatible with the #19395 and #19397 VLC Variable Length Camera adapters and the optional #19391 STL to T-thread adapter. Be sure to set the back-focus distance correctly for your camera system. Back focus diagrams can be found at the bottom of this page.

Technical Specifications

Telescope-Side Compatibility:

• Optec TCF 2-inch focuser line,

• Optec TCF-3 3-inch focuser line with 3-inch to 2-inch adapter,

• Optec Pyxis 2" rotator with camera-side 2-inch receiver,

• Any 2-inch focuser or receiver.

Camera-Side Compatibility:

• Optec #19391 STL to T-thread adapter,

• Optec #19395 Variable Length Camera adapter with T-threads,

• Optec #19397 Variable Length Camera adapter with STL threads,

• SBIG STT cameras with STL 2.156"x24tpi female threads,

• Any female STL threaded camera.

In the Box

Optec Lepus-STL 0.62X

Manual & Warranty

Optec 1-Year Warranty
