Product Details
＋

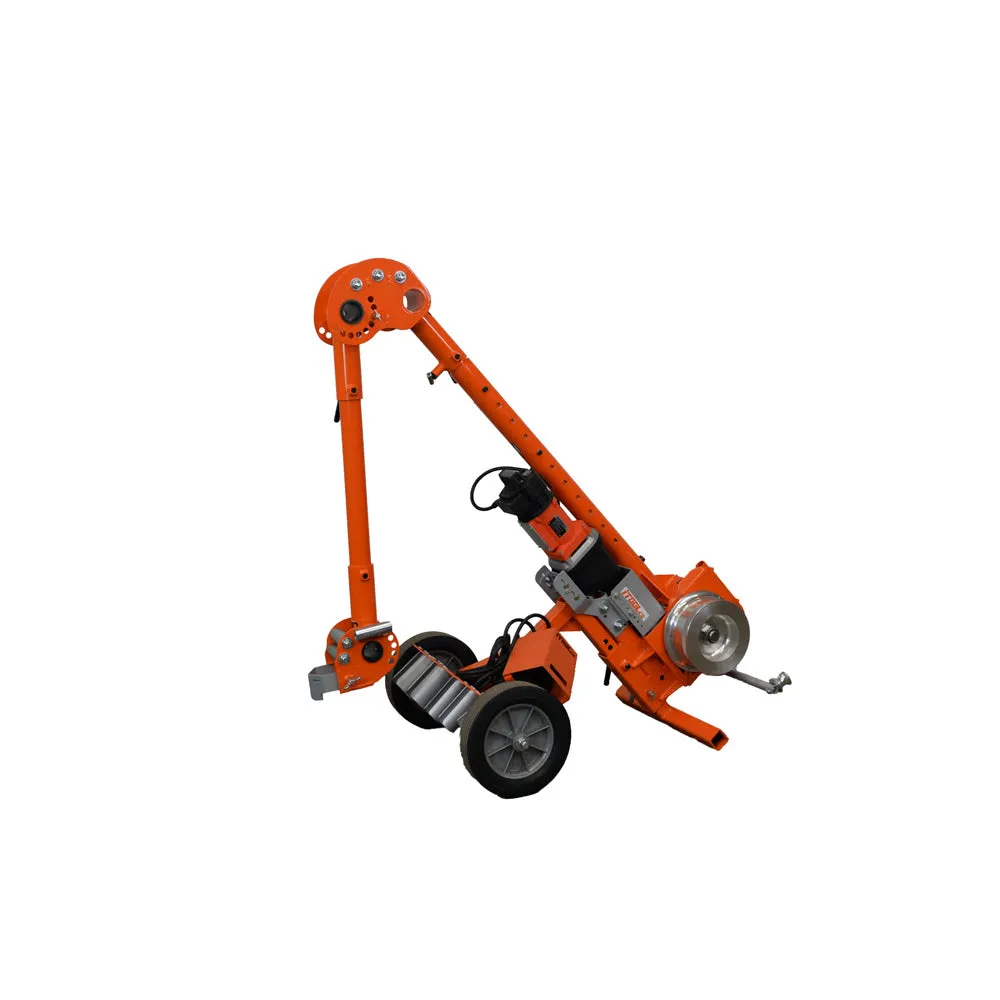

Cannon 10K Wire Puller Description

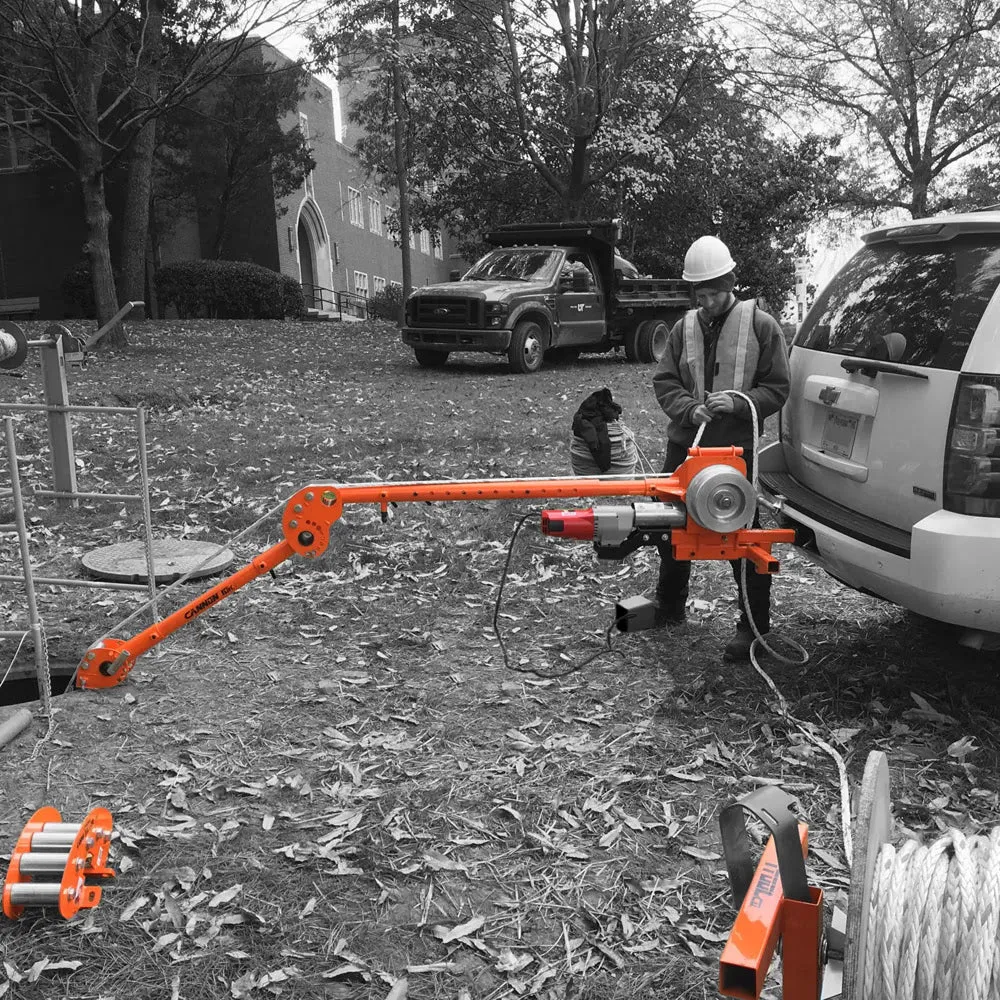

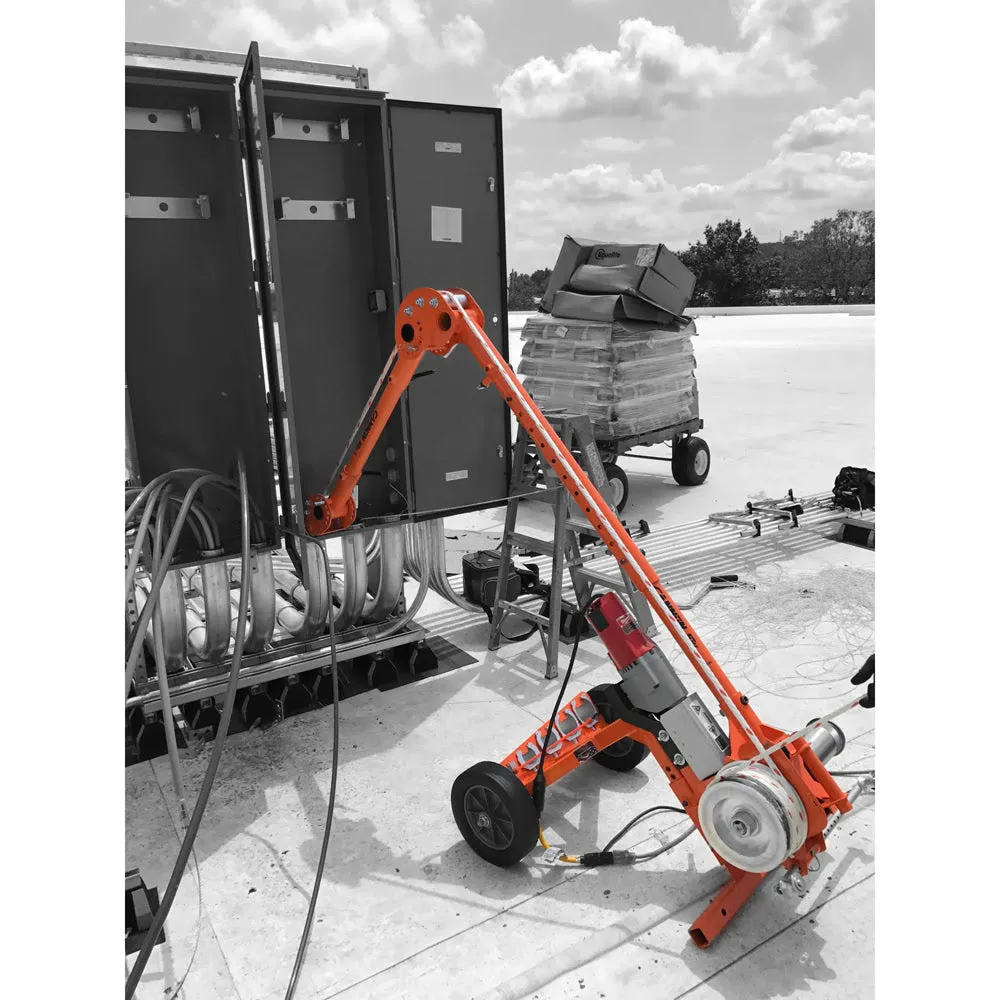

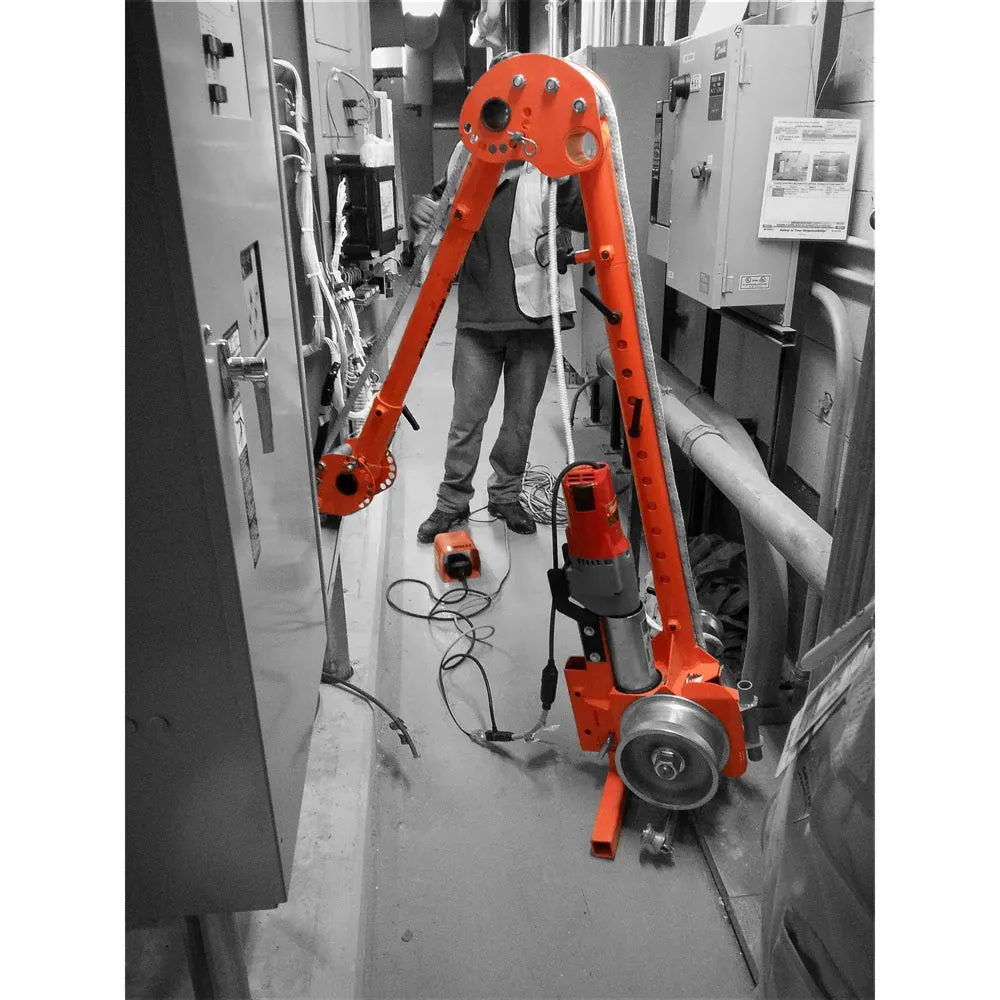

iTOOLco’s Cannon 10K* is the fastest and strongest wire puller available. This versatile cable puller is easy to maneuver, and can be changed quickly from side pulls to overhead or underground. The Cannon 10K is the only 10,000 lb. wire puller that can be attached to the receiver hitch on a truck.
Includes
- (1) Cannon 10K Wire Puller
Features
- 4 Speed dual capstan
- 9′ & 18′ (per min.) on low speed, 20′ & 40′ on high speed
- Self-contained – ready to pull
- Quickly change from side pull to overhead, underground or truck hitch
- No gang box of parts
- Adjustable counter-balance for easy setup and a 15 lb. working weight
- Pulls out 13 feet of extra wire
- Universal adapter – the universal adapter sits on the conduit lock nut, fits a wide range of sizes, and often eliminates the need to use the conduit adapters on lighter pull
- No anchoring required
- Easily maneuvers into tight spaces
Specifications
| Length (fully extended) | 10’6″ |
| Width | 30″ |
| Weight | 308 lb. |
| Pulling rope minimum average breaking strength | 15,000 lb. |
| Recommended pulling rope size | 5/8″ or larger |
