● For Small- to Mid-Sized Events
● 8 x Beltpacks & LEMO Headsets
● 1.9 GHz Full-Duplex Transmission
● Up to 1312' Wireless Range
● 8-Channel Communication
● Sidetone Function
● Cascade Base Station Connection
● Removable Lithium-Ion Batteries
● App & Website-Based Configuration
● Beltpack Charging Station Included
LARK Solidcom M1
Full-Duplex Wireless Intercom Solution

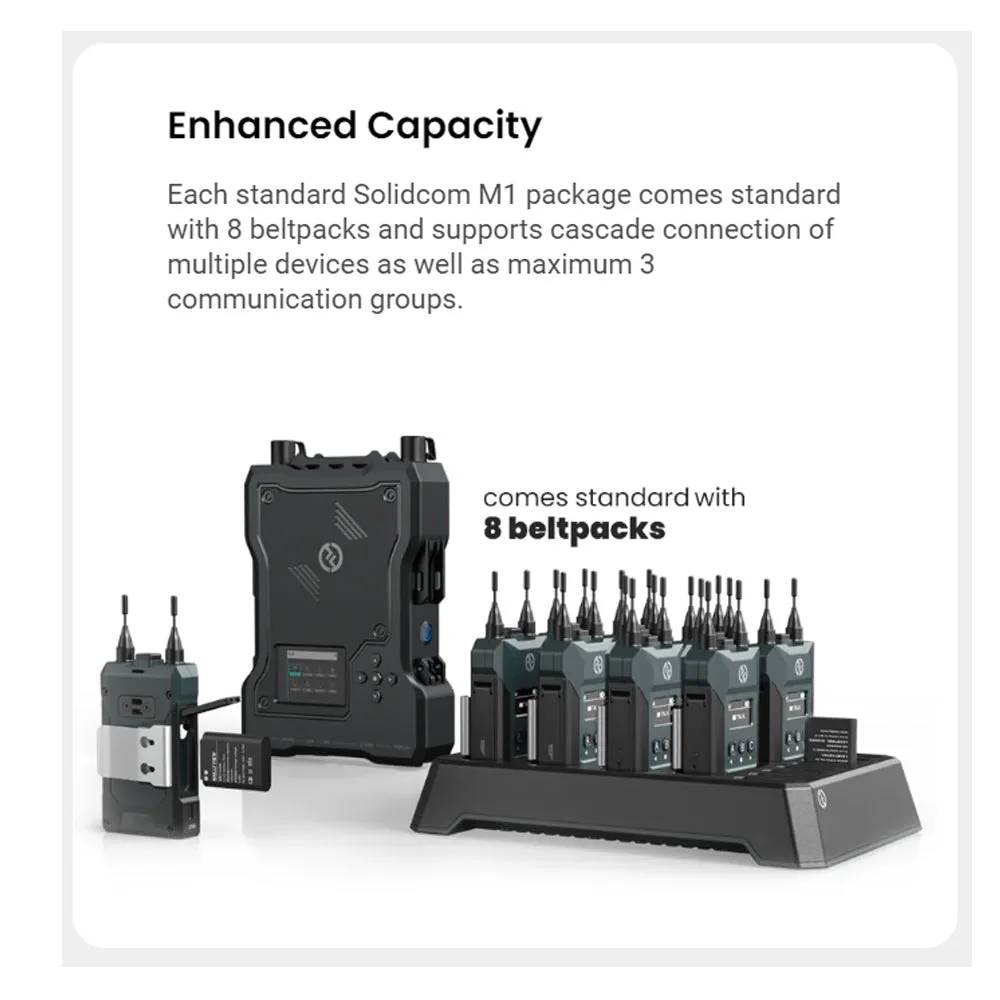

The Solidcom M1 full-duplex wireless intercom system comes standards with 8 beltpacks and supports multiple systems cascading with a maximum of 3 communication groups. Each base station offers a directional transmission range up to 1300ft (400m) with the built-in antenna and reliable transmission in a 360° radius range of around 985ft (300m) with external FRP antennas. This system offers a versatile intercom solution for medium to large events production ranging from church events, livestreaming to electronic field productions, exhibitions, concerts, etc., where the teams need to execute with precision.

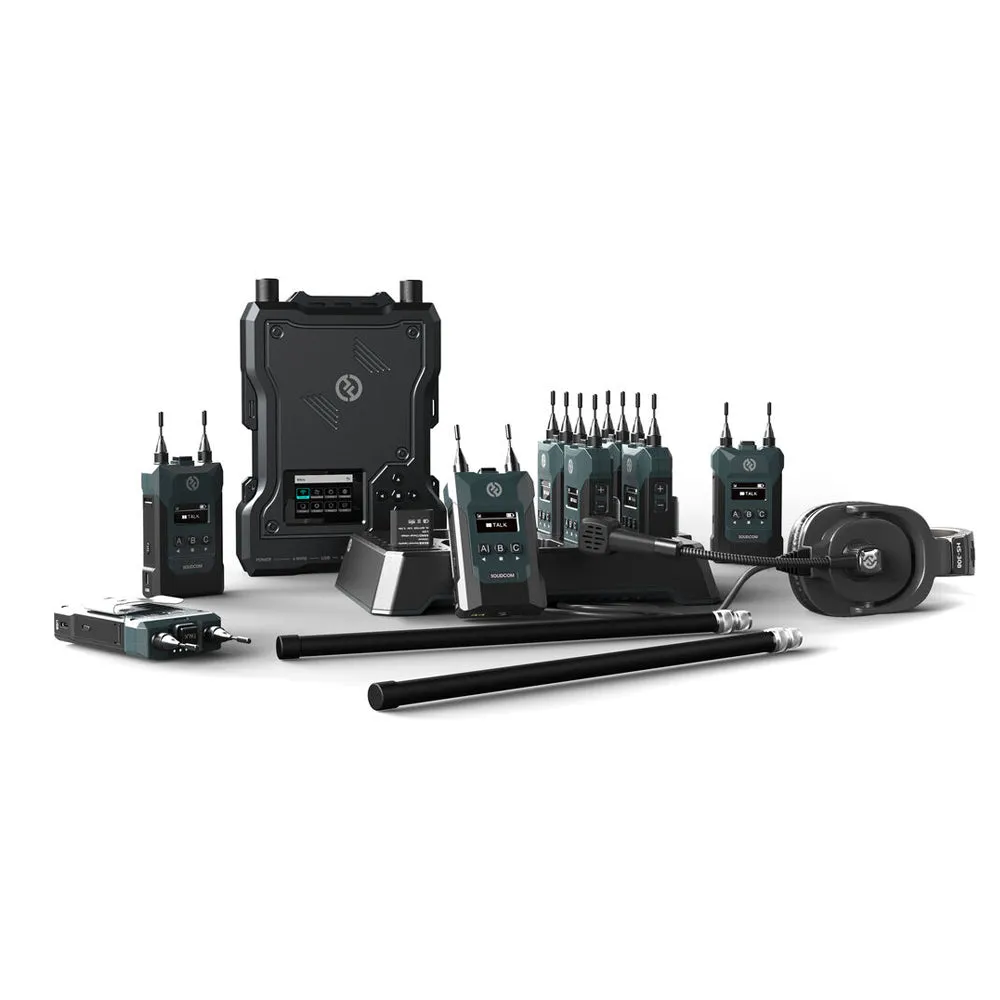

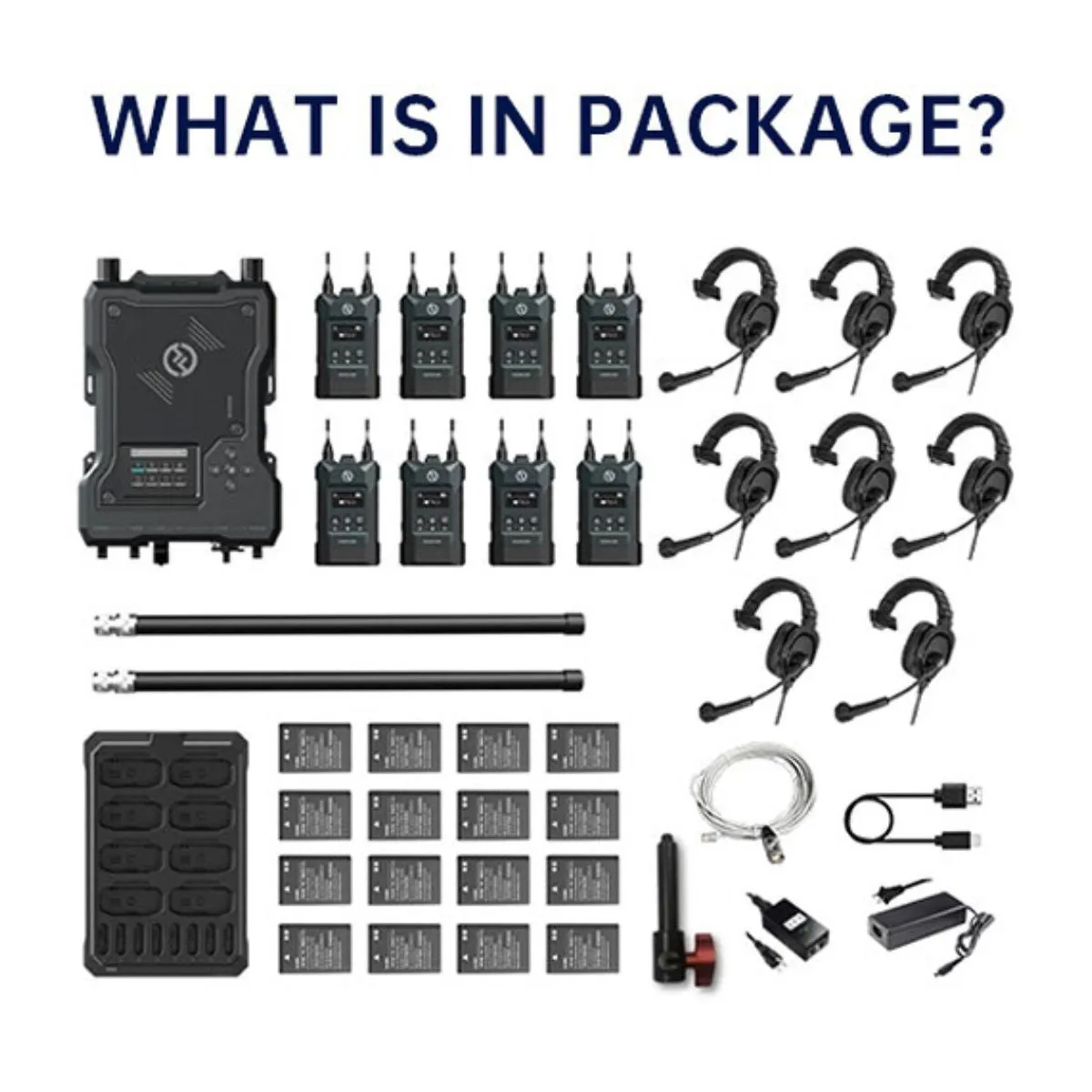

● Master & Remote Headsets × 1
● Beltpack × 8
● Charging Base × 1
● High Gain Omnidirectional Antenna × 2
● Dynamic Double-Ear Headset × 8
● POE Adapter × 1
● Rj45 to XLR Transferring Cable (5 meters) × 1
● USB-Type-A to Type-C Transferring Cable × 1
● 4Pin XLR Adapter × 1
● Battery for Beltpacks × 16
● 3/8 Installing Accessory × 1
● User Guide × 1
Features:

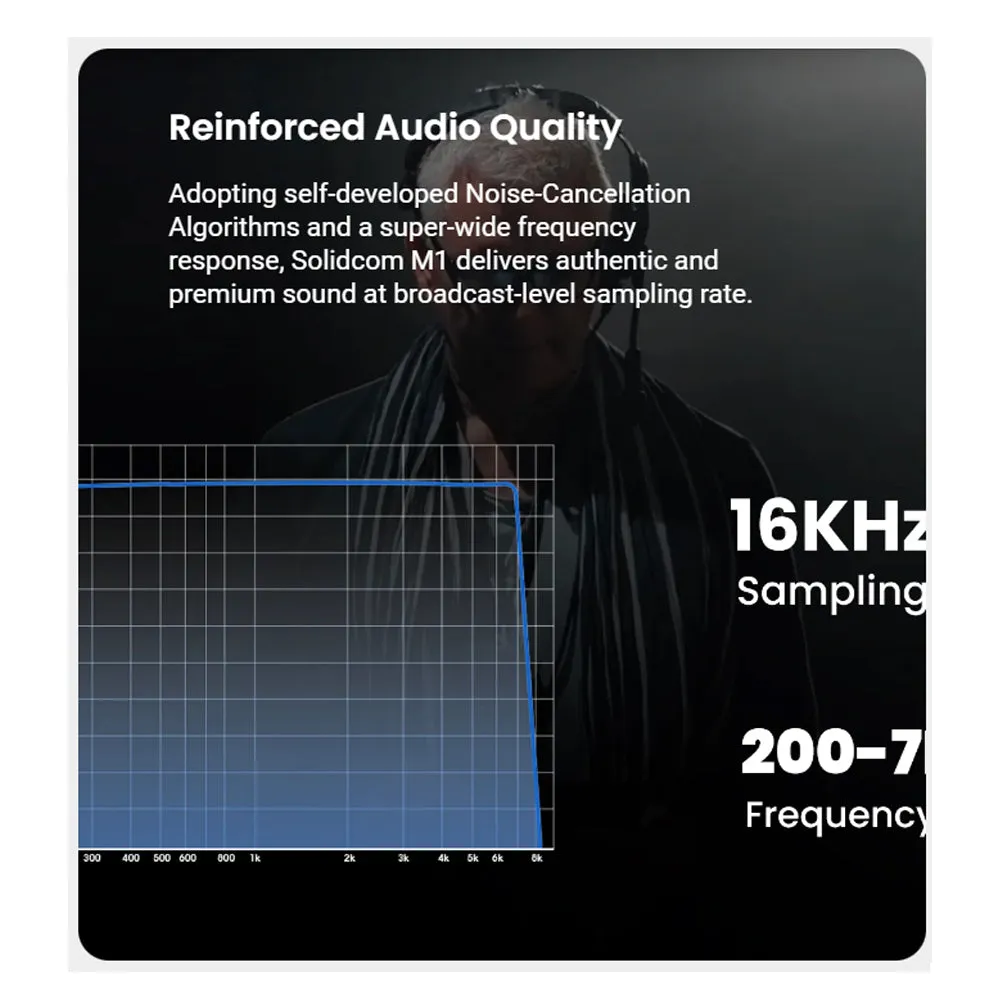

● Reinforced audio quality
● Mic boom up/down for easy talk/mute control

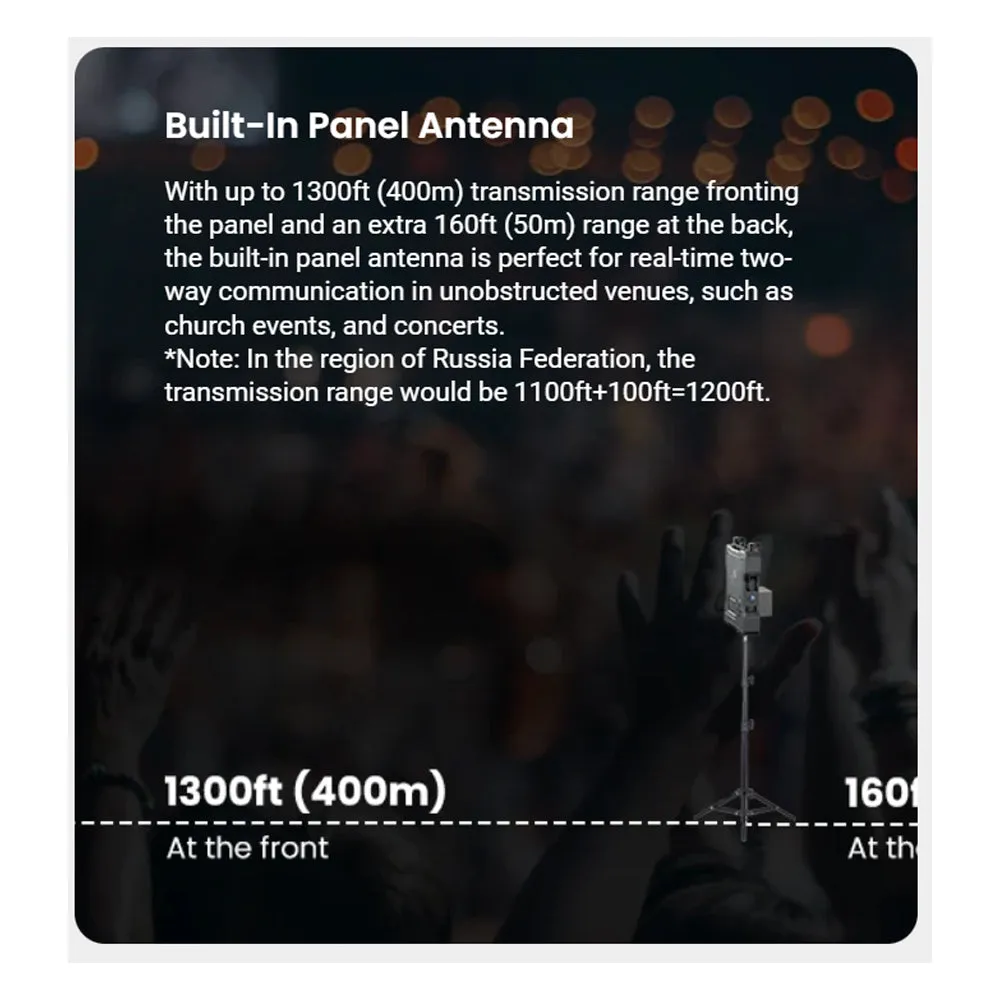

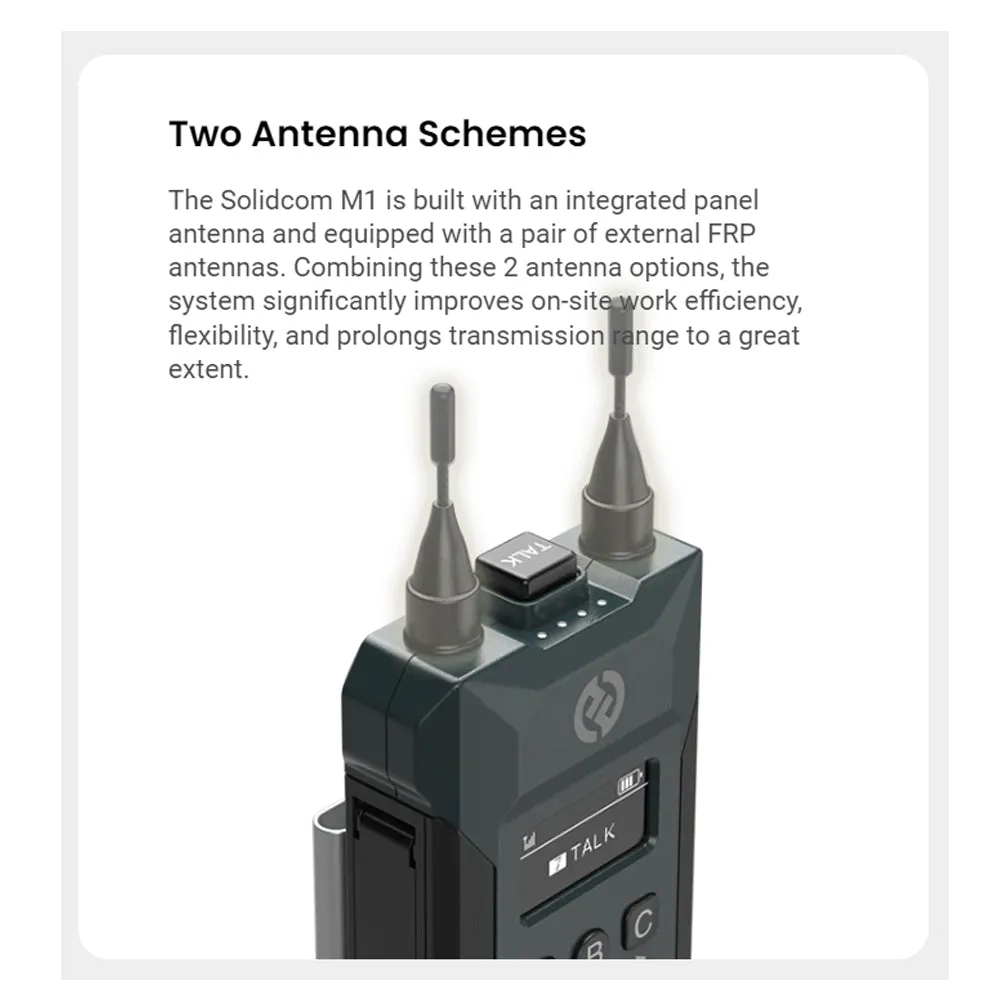

● Industry-First Built-In Panel Antenna Solution with Up To 1300ft-radius range

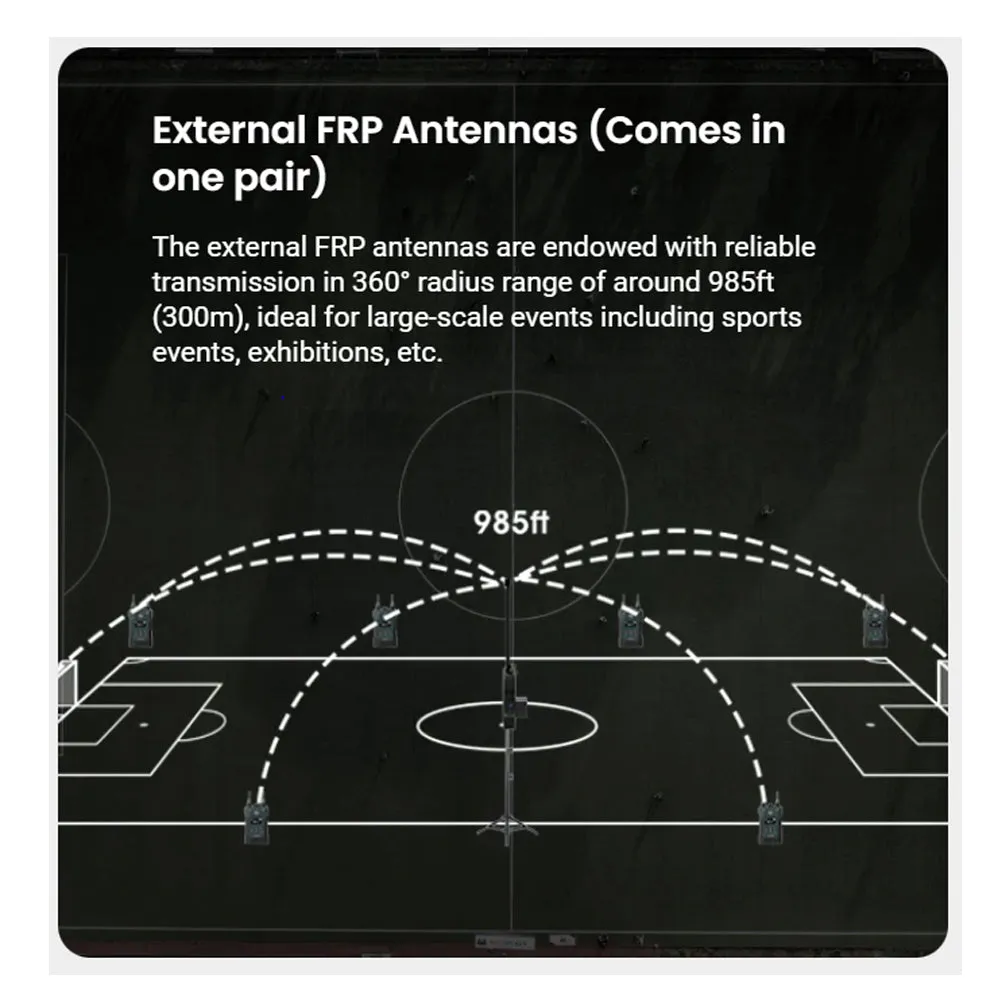

● External FRP antennas included

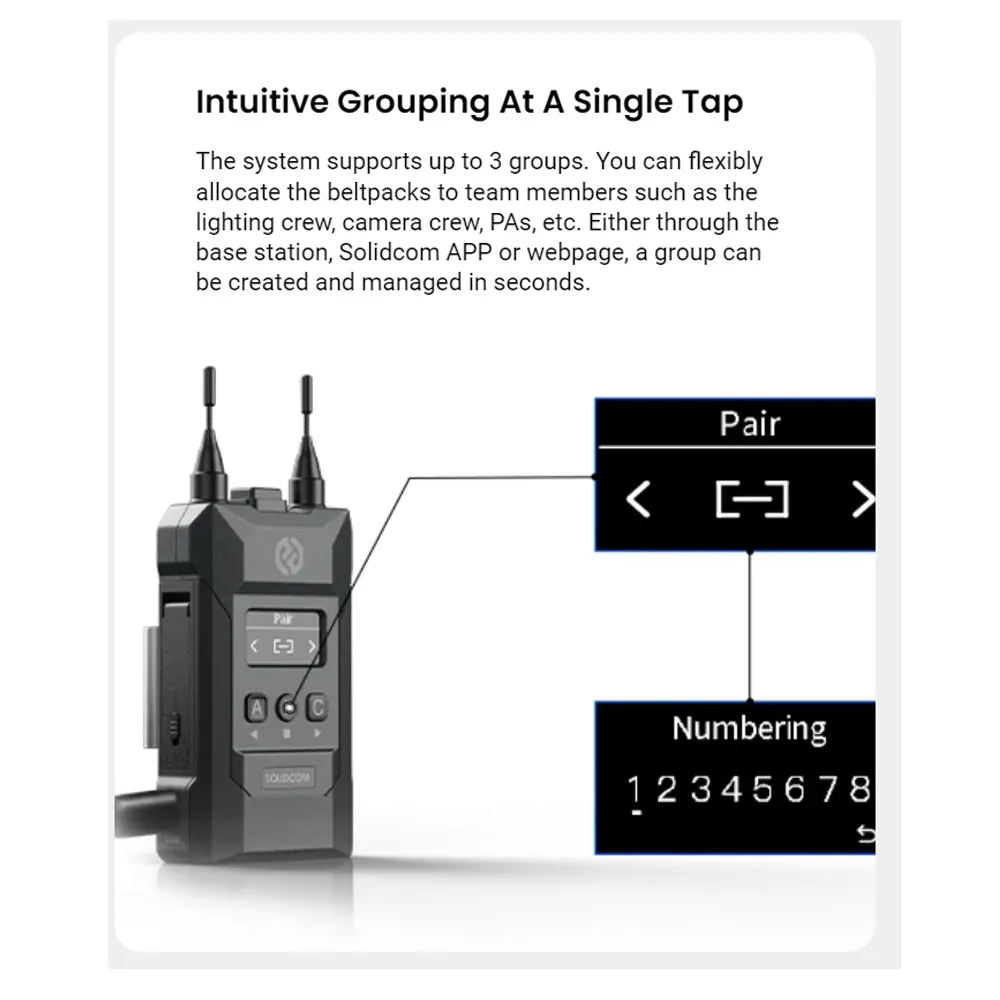

● Grouping talk mode

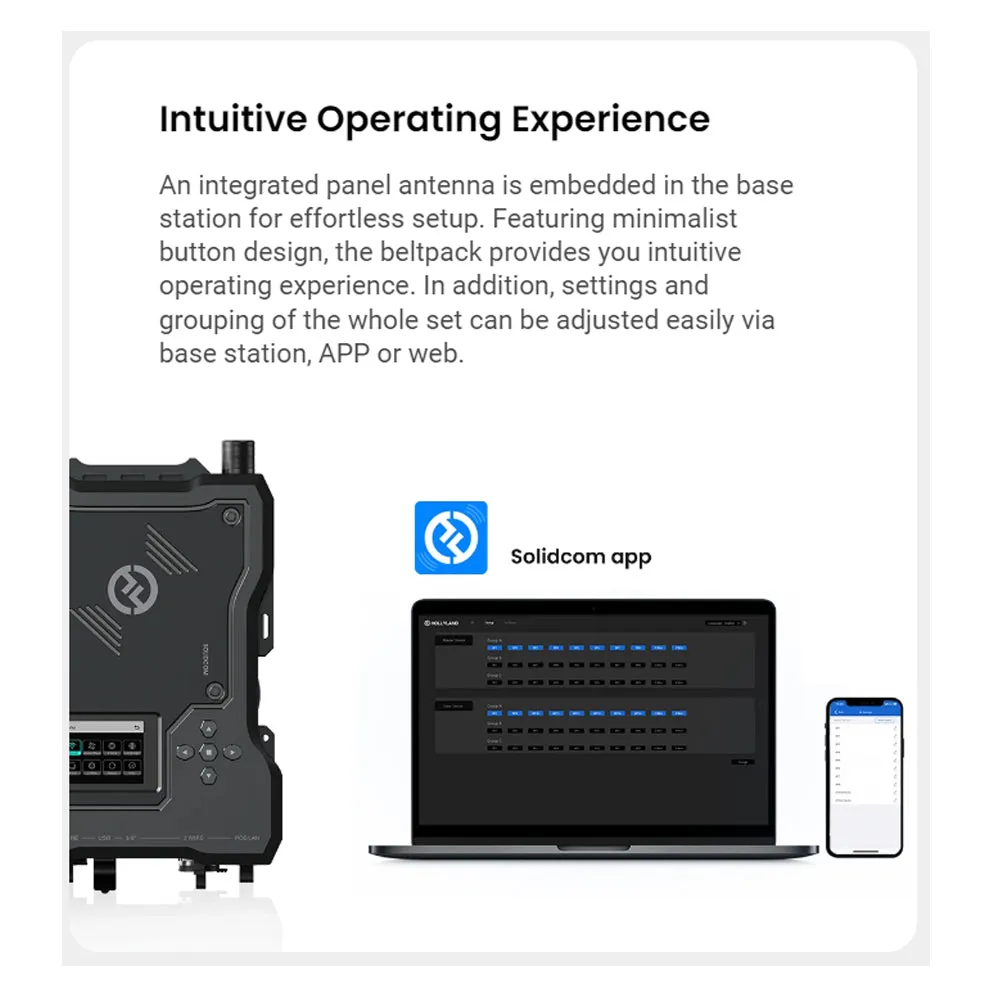

● App and website-based system configuration
● 2-wire and 4-wire intercom system interfaces
● 2.5/hr fast charge lithium-Ion battery
Product Specifications:
Base Station

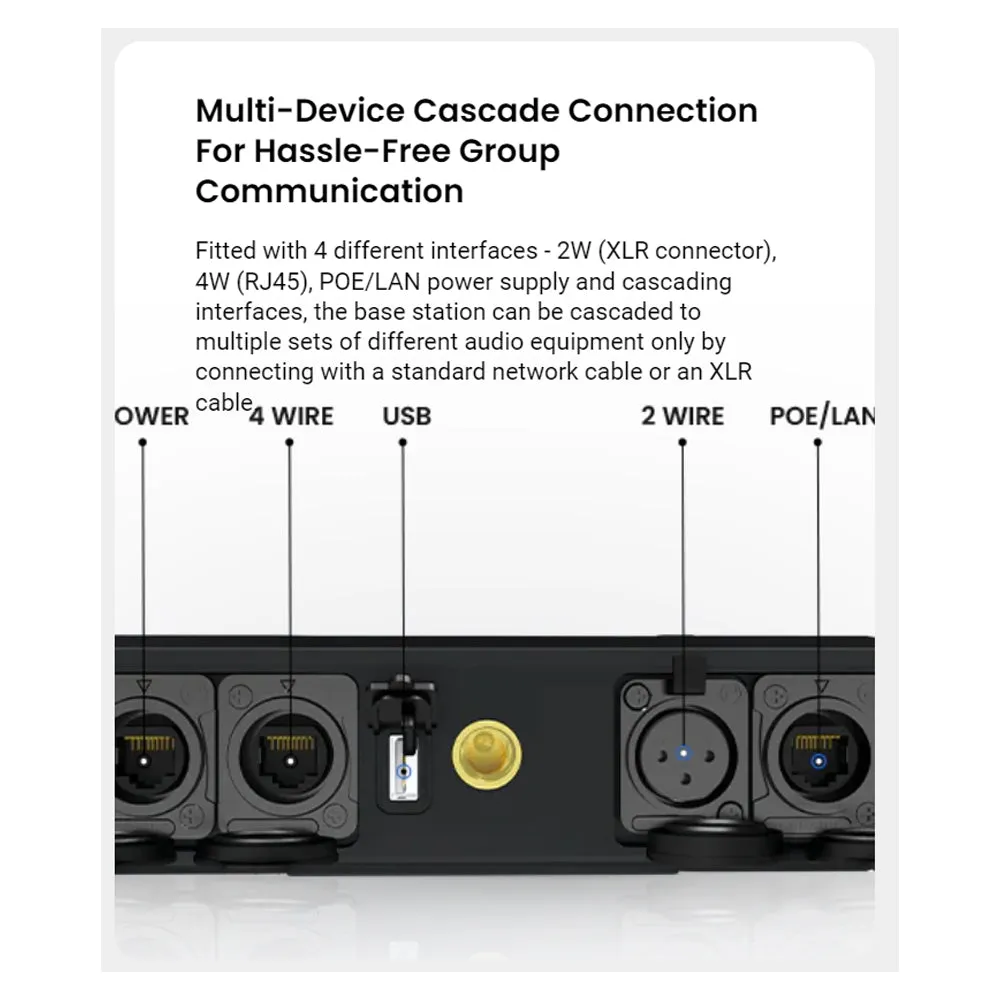

Interfaces
● POE Interface (RJ45)
● Power Supply Interface (RJ45)
● 4 Wire Audio Interface
● USB Interface
● 2 Wire Audio Interface
Power Supply
● POE Power Supply
● NP-F Type Battery
● Frequency Response: 200Hz to 7KHz
● Signal-to-noise Ratio: >50dB
● Distortion: <1%
● Use Range: 450 Meters Line-of-Sight Usage
● Frequency Band: 1.9GHz
● Modulation Mode: GFSK
● Transmit Power: Maximum 21dBm
● Receiving Sensitivity: ≤-93dBm
● Frequency Bandwidth: ≤-93dBm
● Power Consumption: <3W
Dimension
● (L*W*H): 255.5*180.4*48.5mm
● Weight About 1560g
Working Temperature
● 0～ 45℃(Working Status)
● -20～ 60℃(Stock Status)
Beltpack
Interfaces
● 3.5mm Headset Interface
● LEMO Headset Interface
● USB-Type-C Interface
● Power Supply: 1500mAh Lithium Polymer Battery
● Frequency Response: 200Hz to 7KHz
● Signal-to-noise Ratio: >50dB
● Distortion: <1%
● Use Range: 450 Meters Line-of-Sight Usage
● Frequency Band: 1.9GHz
● Modulation Mode: GFSK
● Transmit Power: Maximum 21dBm
● Receiving Sensitivity: ≤-93dBm
● Frequency Bandwidth: ≤-93dBm
● Power Consumption: <0.6W
Dimension
● (L*W*H): 105*65*22.4mm
● Weight About 200g
Working Temperature
● 0～ 45℃(Working Status)
● -20～ 60℃(Stock Status)
The Solidcom M1 system works to deliver clear and conversational communication, ideal for small- to medium-sized events (approximately 100 to 1000 guests), such as a concert, church production, or exhibition.
