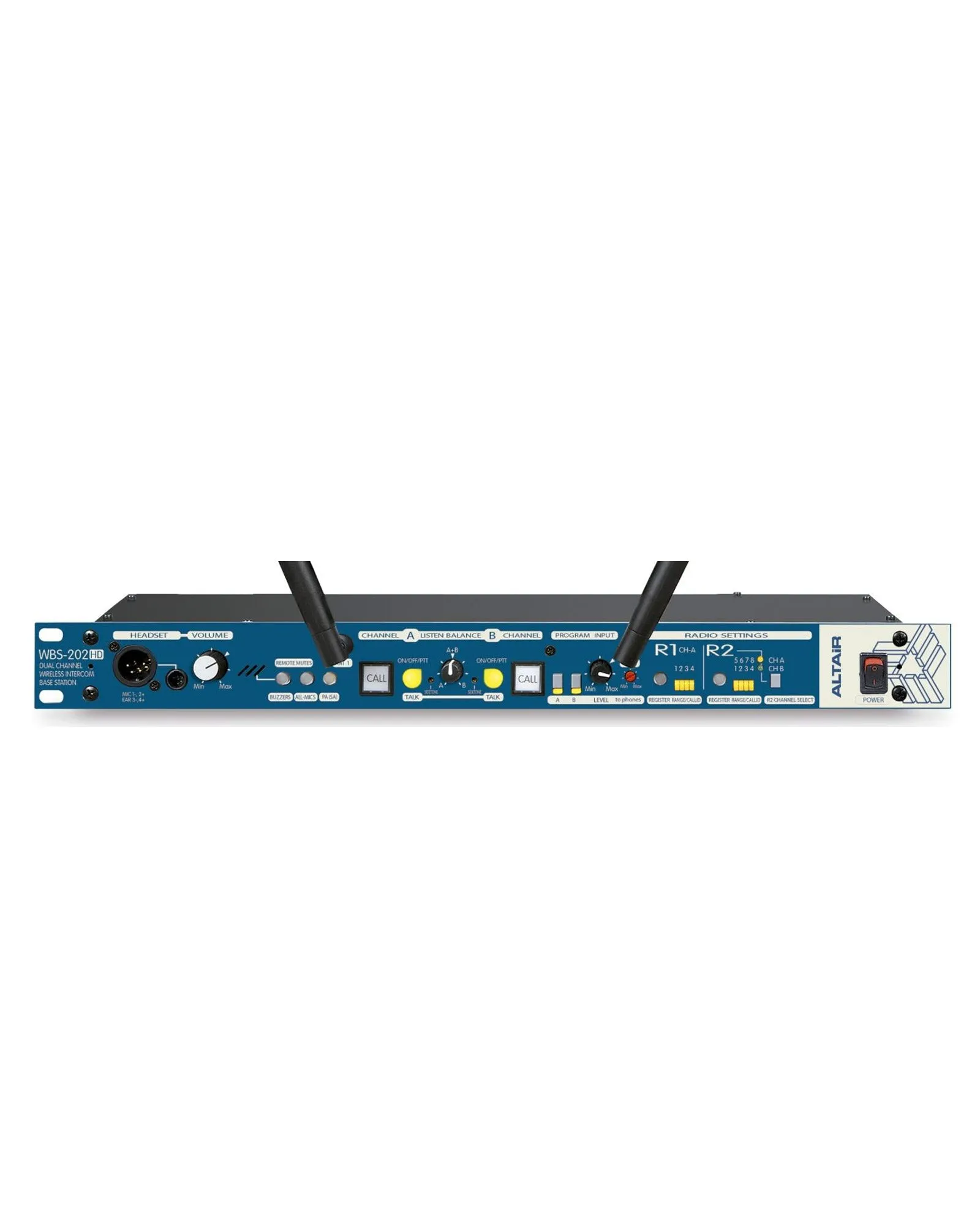

ALTAIR Two Channel Wireless Intercom Base Station WBS-202HD

WBS-202HD base station offers the same features and special functions that our clients love and that turned the WB-200 Series into a huge commercial success, while notably improving the audio quality in the intercom line.

Two omnidirectional antennas are located on the front panel, each of them dedicated to one RADIO link (Left antenna for RADIO 1, right antenna for RADIO 2). By connecting additional antennas the user can set up a Diversity system for each RADIO which will ensure the best possible coverage while minimizing dropouts.

When used along with any HD� ALTAIR beltpack, the WBS-202HD station will deliver a 100Hz-7Khz audio quality.
This dual-channel base station can operate with a maximum of 8 ALTAIR wireless beltpacks, in two different operation modes: A/B or A B. At the same time, the unit allows the use of up to 20 wired beltpacks (EM-201, EM-202, etc.), adding flexibility to the system.
When more beltpacks are needed, the unit can be used in slave� mode by wiring base stations across the working area, ex- panding the number of wireless users in a cellular arrangement.

Technical Specifications

RADIO

“ Frecuency: 1.9 GHz band

“ Modulation: GFSK/TDMA

“ Transmit Power: 22 dBm typically

“ Receive Sensitivity: -92 dBm typically

“ Number of wireless beltpacks per base: 8xWBP-200 single channel or 6xWBP-200 & 2xWBP-202 dual channel

“ Range: Typical 50 to 350 m around base station.

AUDIO

“ Party line channels: 2 lines: A and B selectable

“ HD AUDIO: HD High Definition Audio (100Hz -7KHz when used along with any HD� wireless beltpack).

“ Program Input: Line or Mic level (selectable)
